Gluu Flex Admin UI#

Gluu Flex Admin UI is a web interface to simplify the management and configuration of your Janssen Authentication Server. One of the key services offered by Gluu Flex is the ability to view and edit configuration properties, interception scripts, clients, users, metrics, and more, all in one place. This user-friendly interface facilitates interaction with the Jans Auth Server through a REST API layer known as the Jans Config API.

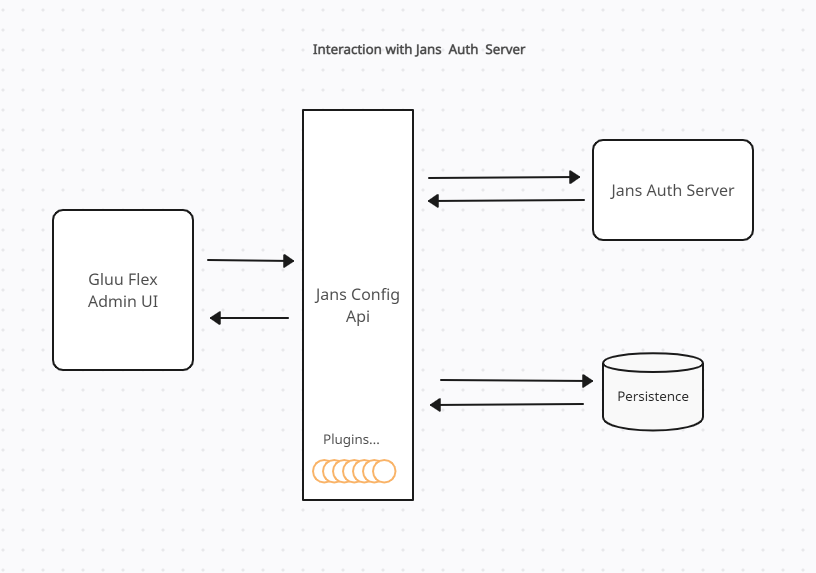

The above diagram explains the interaction between various dependent components.

Admin UI Frontend#

This user-facing Frontend has been developed using the following:

UI Framework & Styling#

  • React 18 — core UI framework
  • MUI (Material UI) v9 — component library (@mui/material, @mui/icons-material, @mui/x-date-pickers)
  • Bootstrap 5 — utility CSS
  • Emotion (@emotion/react, @emotion/styled) — CSS-in-JS, used by MUI
  • tss-react — MUI-compatible typed style system
  • @material-table/core — data tables

State Management & Data Fetching#

  • Redux Toolkit + react-redux — global state management
  • redux-persist — persists Redux state across reloads
  • TanStack Query (React Query) v5 — server state / API data fetching
  • Axios — HTTP client

Routing#

  • React Router DOM v7

Forms & Validation#

  • Formik — form state management
  • Yup — schema-based form validation

Authentication/ Authorization#

  • @openid/appauth — OpenID Connect / OAuth 2.0 client-side auth
  • @janssenproject/cedarling_wasm — Cedarling WASM module for policy-based authorization (Cedar policy engine)

Internationalisation#

  • i18next + react-i18next — i18n support

Utilities#

  • Lodash — general utility functions
  • Dayjs — date/time handling
  • Recharts — charts (used for MAU dashboard)
  • react-toastify — toast notifications
  • animejs — animations
  • clsx — conditional class names

Build & Tooling#

  • Vite v8 — build tool
  • TypeScript 6
  • Orval — generates typed API client from OpenAPI spec
  • Jest + React Testing Library — unit/component testing
  • ESLint + Prettier — linting and formatting

Admin UI Backend#

The GUI utilizes a dedicated Java backend to handle specific tasks, such as reading the Admin UI configuration from persistence, managing Admin UI roles and permission mapping in configuration, performing audit logging, and making calls to license APIs on Agama Lab. The Jans Config API follows a flexible plugin architecture, allowing the addition of new APIs through extensions known as plugins, without the need to modify the core application. The Admin UI Backend has been incorporated into the Jans Config API as a plugin to address Admin UI-specific tasks.

Installation#

Gluu Flex can be installed using VM installer or using Helm Deployments on Cloud Native.

Gluu Flex License#

After installation, the Admin UI can be accessed at https://hostname/admin (the hostname is provided during setup). Access to this web interface is granted only after issuing a Software Statement Assertion (SSA) and subscribing to the Admin UI license from Agama Lab. The SSA issued from the Agama Lab is used by Admin UI to register an OIDC client to access license APIs. Follow this guide for detailed steps.

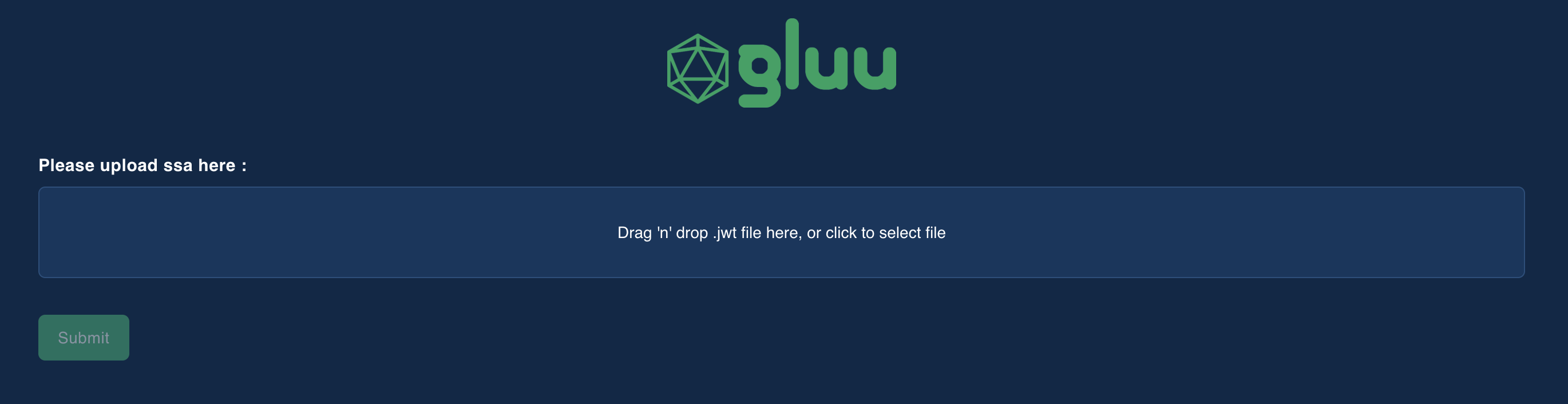

Upload SSA

There is a provision to generate a 30-day free trial license of Gluu Flex which will help users to enter and understand this web interface.

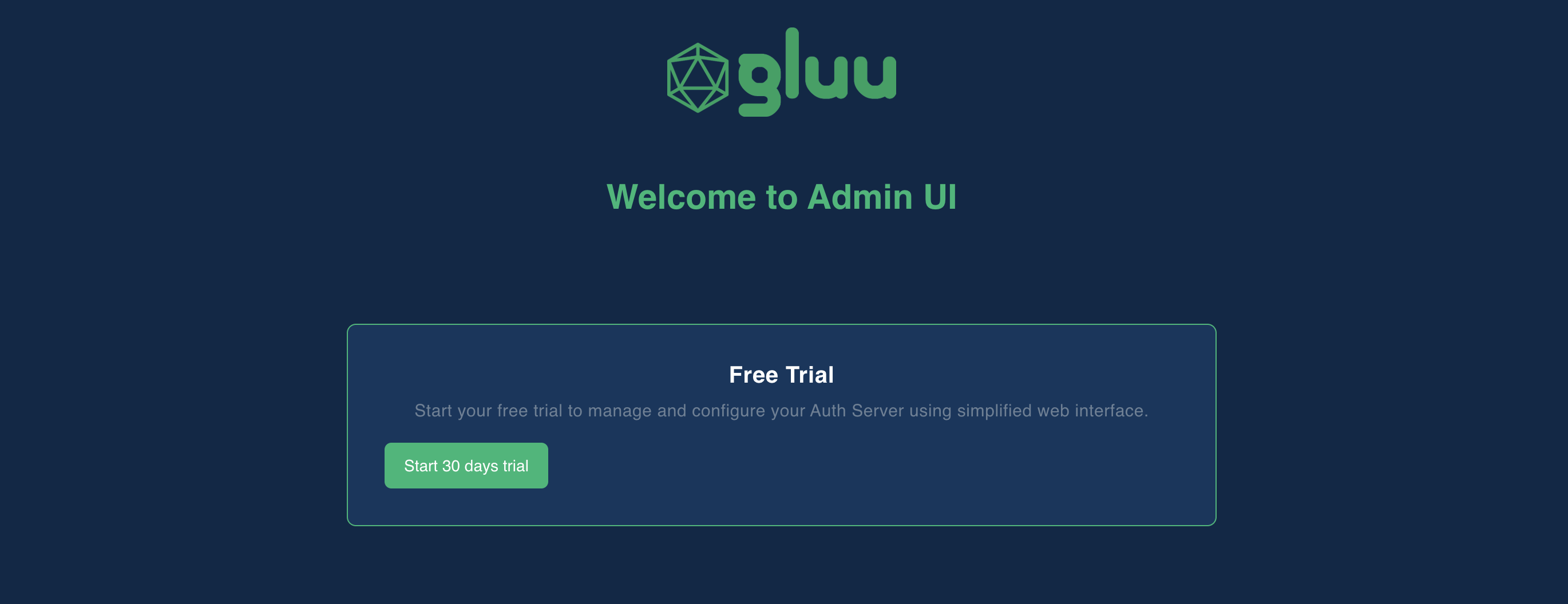

Issue Trial license page

After license activation, the user can log into Gluu Flex Admin UI using the default username (admin) and the password (the admin password provided during installation).


Flex services dependencies#

Gluu Flex Admin UI depends on following Flex services:

  • Janssen Config API service (jans-config-api.service)
  • The Apache HTTP Server (apache2.service)
