Gluu Flex Admin UI Configuration#

This document outlines the configuration process for Gluu Flex Admin UI, with a focus on essential components stored in the Auth Server's persistence layer. These components include Cedarling Configuration, OIDC client details for accessing the Auth Server, OIDC client details for accessing the Token Server, OIDC client details for accessing the License APIs, and license metadata.

Configuration Components#

Cedarling Configuration#

Gluu Flex Admin UI uses Cedarling for GUI access control. The role of the user is mapped with specific permissions (scopes) to ensure that the user can only access and modify functionalities relevant to their roles.

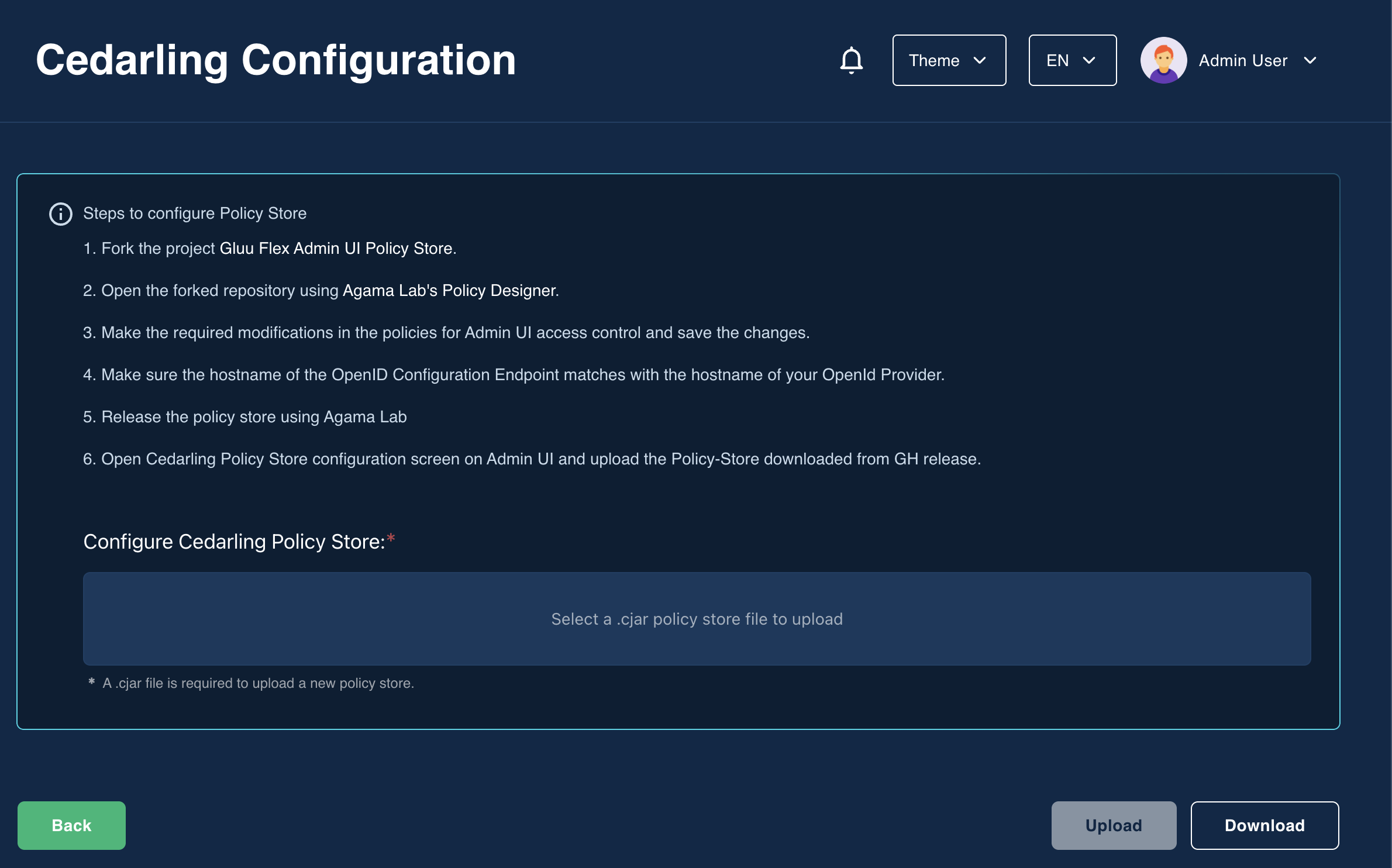

The Cedarling Policy Store configuration screen helps to upload the Policy Store archive file used for the Admin UI access control. The Gluu Flex Admin UI uses a default Policy Store after installation for GUI access control. You can upload a new Cedarling Policy Store and Admin UI backend will automatically synchronize roles and role-to-scope mapping as per the schema and policies defined in the Policy Store.


Steps to create and upload Policy Store archive file#

  1. Fork the project GluuFlexAdminUIPolicyStore.
  2. Open the forked GitHub repository using Agama Lab's Policy Designer.
  3. Make the required modifications in the policies for Admin UI access control and save the changes.

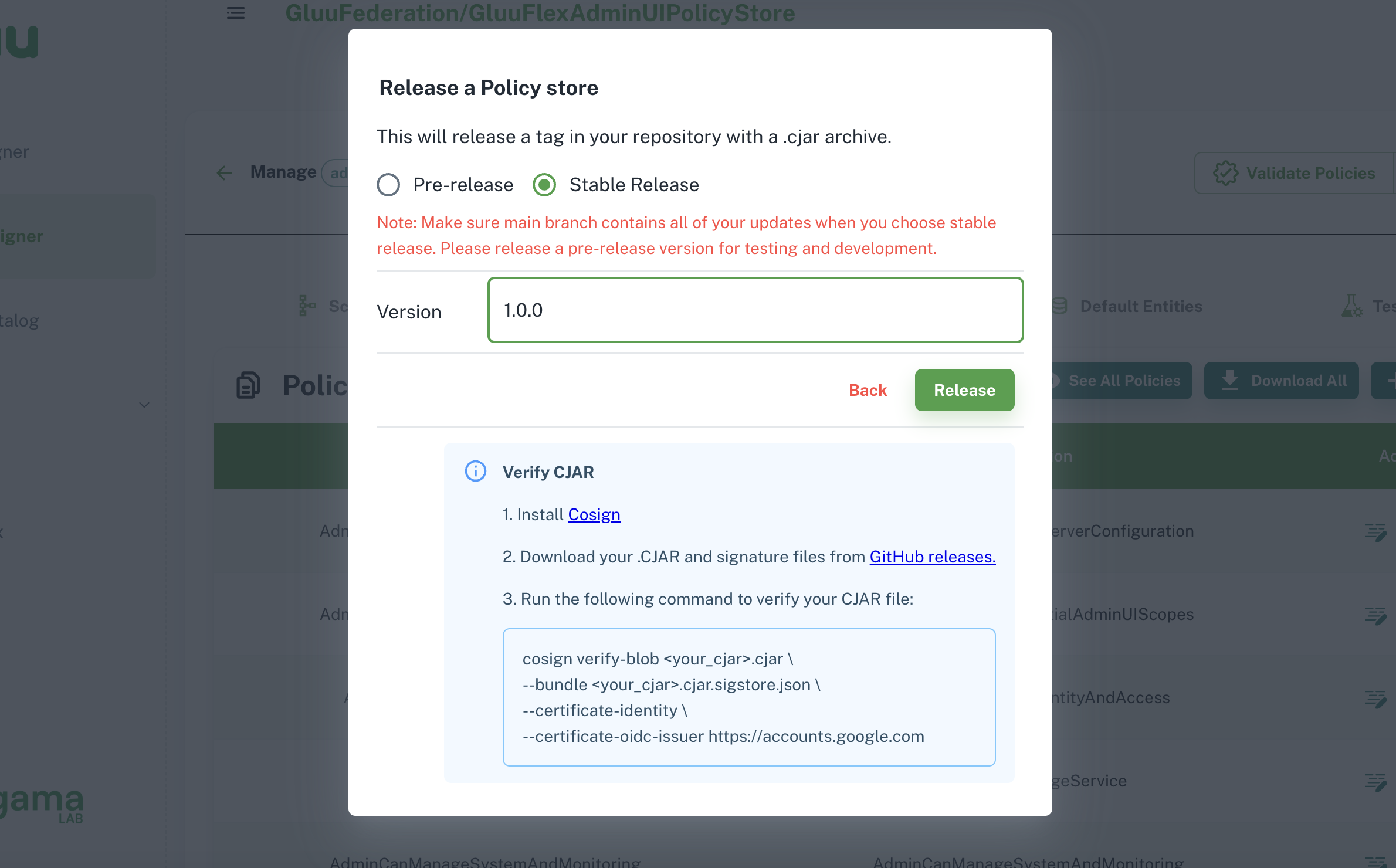

  4. Release the policy store archive file (with .cjar extension) from Agama Lab. image

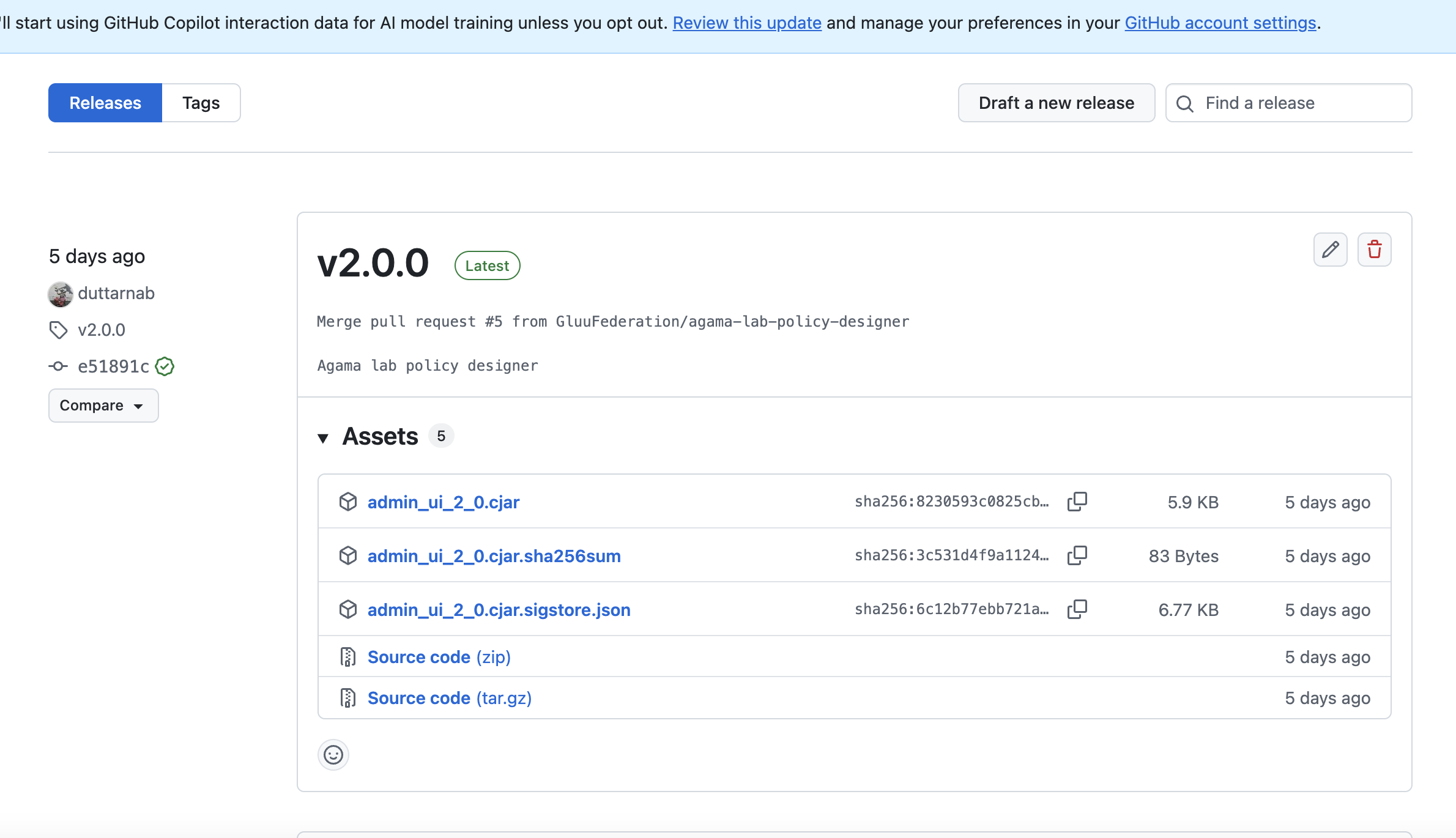

  5. Download the released Policy Store archive file (with .cjar extension) from the releases section GitHub policy-store repository. image
  6. Open Cedarling Policy Store configuration screen on Admin UI and upload the Policy Store archive file.

OIDC Client Details for Auth Server#

To establish secure communication with the Auth Server, Gluu Flex Admin UI requires the OIDC client details, including client ID and client secret. These details are used for authentication and authorization purposes.

The information is stored in json format with following attributes.

Attribute Name Description
auiWebClient Object with Web OIDC client details
opHost Auth Server hostname
clientId Client Id of OIDC client used to access Auth server
clientSecret Client Secret of OIDC client used to access Auth server
scopes Scopes required for Admin UI authentication
acrValues ACR required for Admin UI authentication
redirectUri Redirect UI which is Admin UI home page
postLogoutUri Url to be redirected after Admin UI logout
frontchannelLogoutUri Front channel Logout Uri
additionalParameters The custom parameters allow you to pass additional information to the authorization server during Admin UI authentication. Format: [{"key": "custom-param-key", "value": "custom-param-value"}, ...]

OIDC Client Details for Backend API Server#

Similarly, Gluu Flex Admin UI needs OIDC client details to interact with the Janssen Server via. Jans Config API protected APIs. The Backend API client enables the UI to request and manage access tokens required to access Jans Config API protected resources.

The information is stored in json format with following attributes.

Attribute Name Description
auiBackendApiClient Object with Backend API client details
opHost Token Server hostname
clientId Client Id of OIDC client used to access Token server
clientSecret Client Secret of OIDC client used to access Token server
tokenEndpoint Token endpoint of token server

Configuration Properties for User-Interface#

Attribute Name Description
uiConfig Object with UI configuration attributes

uiConfig

Attribute Name Description
sessionTimeoutInMins Admin UI Frontend session out time
allowSmtpKeystoreEdit Allow to edit SMTP keystore fields. The default value is true.
cedarlingLogType Set embeded Cedarling log-type in Admin UI. The allowed values are off and std_out.
auiPolicyStoreUrl Path of Policy Store archive file
auiDefaultPolicyStorePath The path of the default Policy Store json file on Config Api pod.

OIDC Client Details for License Server#

Access to the License APIs is managed through OIDC client details. These details allows the Gluu Flex Admin UI Backend to generated access token to allow the retrieval of license-related information using license APIs.

The information is stored in json format with following attributes.

Attribute Name Description
opHost Auth Server hostname used to generate token to access License APIs
clientId Client Id of OIDC client used to generate token to access License APIs
clientSecret Client Secret of OIDC client used to generate token to access License APIs

License Metadata#

License metadata includes relevant information about the Gluu Flex Admin UI's licensing, such as License Key, Hardware id, License server url, License Auth server url, SSA used to register license auth server client.

The information is stored in json format with following attributes.

Attribute Name Description
licenseConfig Object with License configuration details
ssa SSA used to register OIDC client to access license APIs
scanLicenseApiHostname SCAN License server hostname
licenseKey License-key to access Admin UI
licenseHardwareKey Hardware key (org_id) to access license APIs
intervalForSyncLicenseDetailsInDays The Admin UI backend syncs license details into the configuration (persistence) after the set interval (default: 30 days).
licenseValidUpto Expiry date to the subscribed flex license
licenseDetailsLastUpdatedOn The date on which the license details were synced from Agama Lab to the Admin UI's License Configuration
productCode The product code of the issued license at LicenseSpring
licenseType The license type of the issued license at LicenseSpring
licenseActive Is the license configured currently active?
licenseExpired Is the license configured expired?
licenseMAUThreshold The allowed monthly active users for issued license
oidcClient Object with details of OIDC client to access license API

Sample configuration stored in persistence

{
  "oidcConfig": {
    "auiWebClient": {
      "introspectionEndpoint": null,
      "tokenEndpoint": null,
      "redirectUri": "https://your.host.com/admin",
      "postLogoutUri": "https://your.host.com/admin",
      "frontchannelLogoutUri": "https://your.host.com/admin/logout",
      "scopes": [
        "openid",
        "https://jans.io/auth/ssa.admin",
        "email",
        "profile",
        "offline_access",
        "jans_stat"
      ],
      "acrValues": [
        "simple_password_auth"
      ],
      "opHost": "https://your.host.com",
      "clientId": "xxxx.xxxxxxx-xxxx-xxxx-xxxx-xxxxxx",
      "clientSecret": "xxxxxxxxxxxxx",
      "additionalParameters": []
    },
    "auiBackendApiClient": {
      "introspectionEndpoint": "https://your.host.com/jans-auth/restv1/introspection",
      "tokenEndpoint": "https://your.host.com/jans-auth/restv1/token",
      "redirectUri": null,
      "postLogoutUri": null,
      "frontchannelLogoutUri": null,
      "scopes": [
        "openid",
        "https://jans.io/auth/ssa.admin"
      ],
      "acrValues": null,
      "opHost": "https://your.host.com",
      "clientId": "xxxx.xxxxxxx-xxxx-xxxx-xxxx-xxxxxx",
      "clientSecret": "xxxxxxxxxxxxx",
      "additionalParameters": null
    }
  },
  "licenseConfig": {
    "ssa": "eyJraWQiOiJzc2FfN2IyMGM1MDYtMDlhNi00MTU1LWF....",
    "scanLicenseApiHostname": "https://license-server-hostname.gluu.org",
    "licenseKey": "xxxx.xxxxxxx-xxxx-xxxx-xxxx-xxxxxx",
    "licenseHardwareKey": "xxxx.xxxxxxx-xxxx-xxxx-xxxx-xxxxxx",
    "licenseValidUpto": "2026-07-07",
    "licenseDetailsLastUpdatedOn": "2026-06-18",
    "productCode": "adminui001",
    "productName": "Gluu Admin UI",
    "licenseType": "time-limited",
    "customerFirstName": "",
    "customerLastName": "",
    "customerEmail": "trial_request",
    "companyName": "",
    "licenseActive": true,
    "licenseExpired": false,
    "licenseMAUThreshold": 1000,
    "intervalForSyncLicenseDetailsInDays": 30,
    "oidcClient": {
      "introspectionEndpoint": null,
      "tokenEndpoint": null,
      "redirectUri": null,
      "postLogoutUri": null,
      "frontchannelLogoutUri": null,
      "scopes": null,
      "acrValues": null,
      "opHost": "https://account-server-hostname.gluu.org",
      "clientId": "xxxx.xxxxxxx-xxxx-xxxx-xxxx-xxxxxx",
      "clientSecret": "xxxx.xxxxxxx-xxxx-xxxx-xxxx-xxxxxx",
      "additionalParameters": null
    }
  },
  "uiConfig": {
    "sessionTimeoutInMins": 31,
    "allowSmtpKeystoreEdit": true,
    "cedarlingLogType": "off",
    "auiPolicyStoreUrl": "",
    "auiDefaultPolicyStorePath": "./custom/config/adminUI/policy-store.cjar"
  }
}
