Gluu Flex Admin UI Configuration#

This document outlines the configuration process for Gluu Flex Admin UI, with a focus on essential components stored in the Auth Server's persistence layer. These components include Cedarling Configuration, OIDC client details for accessing the Auth Server, OIDC client details for accessing the Token Server, OIDC client details for accessing the License APIs, and license metadata.

Configuration Components#

Cedarling Configuration#

Gluu Flex Admin UI uses Cedarling for GUI access control. The role of the user is mapped with specific permissions (scopes) to ensure that the user can only access and modify functionalities relevant to their roles.

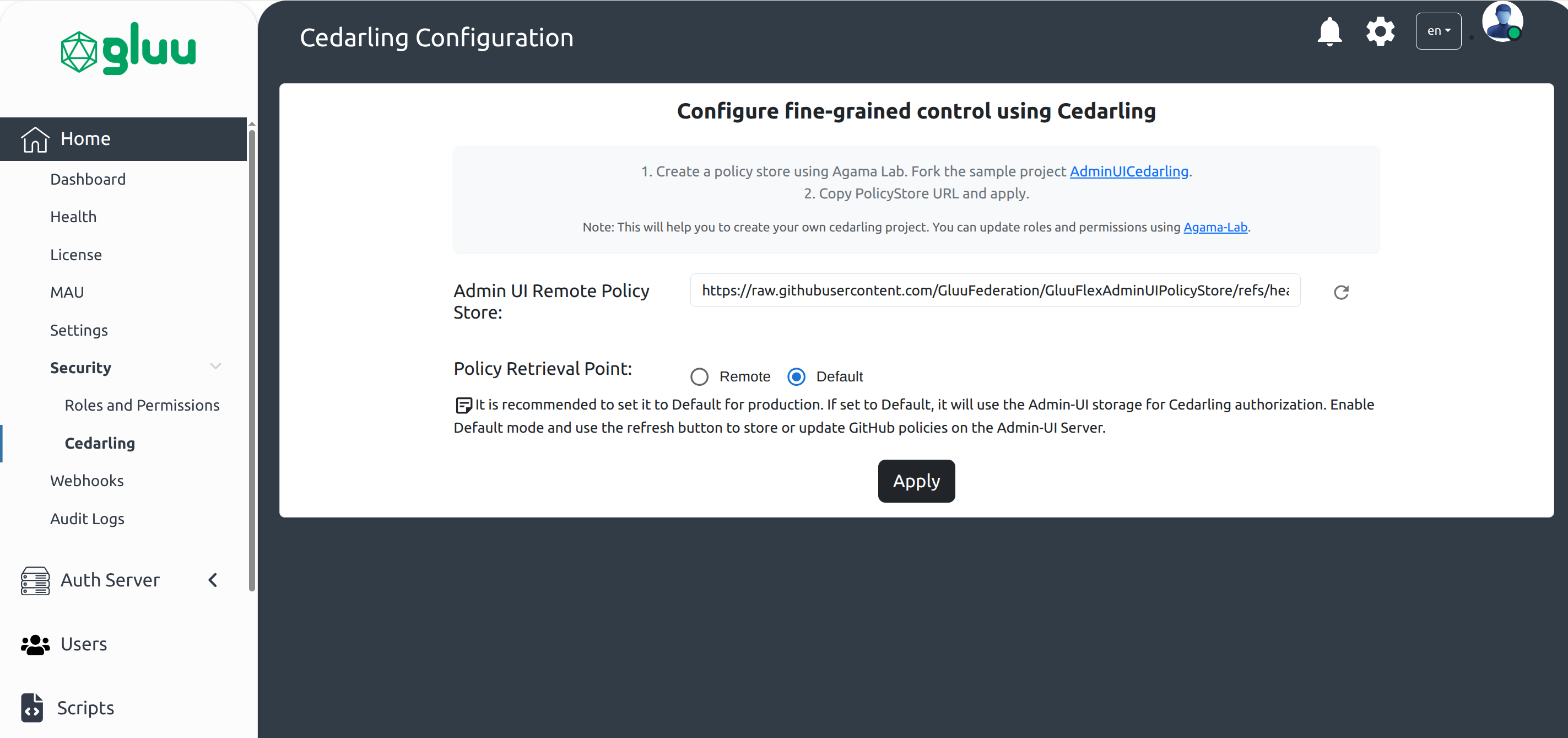

The Cedarling Policy Store configuration screen helps to configure the Policy Store used for the Admin UI access control. The Gluu Flex Admin UI uses a default Policy Store after installation for GUI access control. You need to configure a remote Cedarling Policy Store using its URL and Admin UI backend will automatically synchronize roles and role-to-scope mapping as per the schema and policies defined in the Policy Store.


Policy Retrieval Point#

This feature is useful for setting PRP. It helps to prevent MITM attacks in production. There are 2 modes.

  1. Remote: In this mode, Admin UI will always use the remote policy store URL to initialize Cedarling, fetch policies, and schema.

  2. Default: It is recommended to set it to Default for production. If set to Default, it will use the Admin-UI storage for Cedarling authorization. Enable Default mode and use the refresh button to store or update GitHub policies on the Admin-UI Server.

Steps to configure Remote Policy Store URL#

  1. Fork the project GluuFlexAdminUIPolicyStore.
  2. Open the forked repository using Agama Lab's Policy Designer.
  3. Make the required modifications in the policies for Admin UI access control and save the changes.

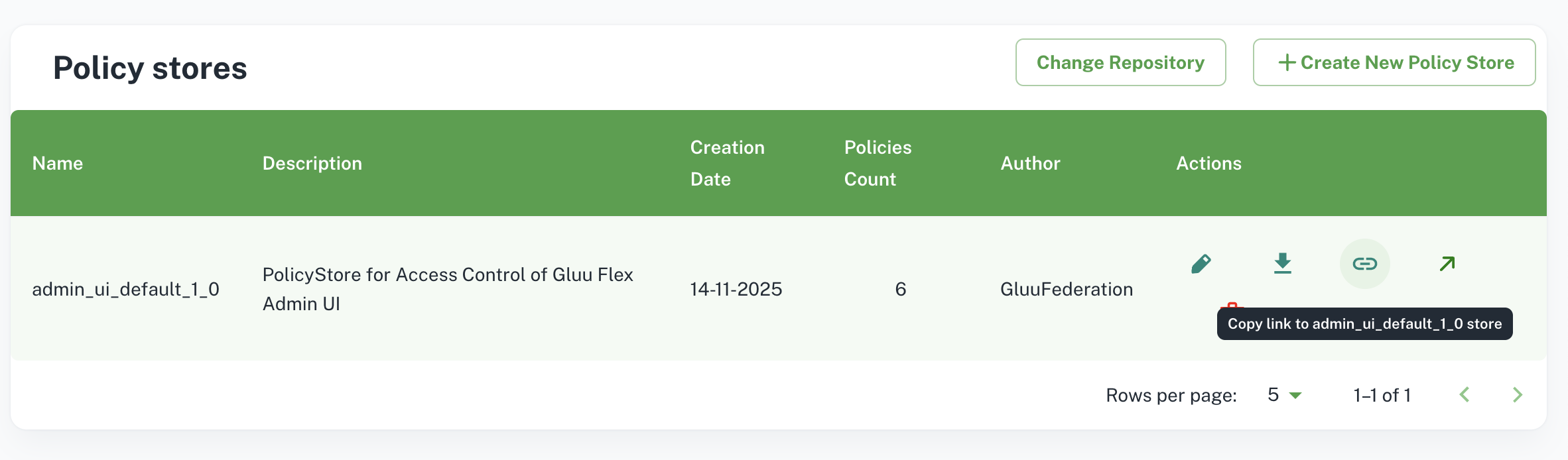

  4. Copy the Policy Store URL. image
  5. Open Cedarling Policy Store configuration screen on Admin UI and add the copied Policy Store URL in Admin UI Remote Policy Store field.
  6. Set Policy Retrieval Point field to Remote to use the remote Policy Store URL for the GUI access control.

OIDC Client Details for Auth Server#

To establish secure communication with the Auth Server, Gluu Flex Admin UI requires the OIDC client details, including client ID and client secret. These details are used for authentication and authorization purposes.

The information is stored in json format with following attributes.

Attribute Name Description
auiWebClient Object with Web OIDC client details
opHost Auth Server hostname
clientId Client Id of OIDC client used to access Auth server
clientSecret Client Secret of OIDC client used to access Auth server
scopes Scopes required for Admin UI authentication
acrValues ACR required for Admin UI authentication
redirectUri Redirect UI which is Admin UI home page
postLogoutUri Url to be redirected after Admin UI logout
frontchannelLogoutUri Front channel Logout Uri
additionalParameters The custom parameters allow you to pass additional information to the authorization server during Admin UI authentication. Format: [{"key": "custom-param-key", "value": "custom-param-value"}, ...]

OIDC Client Details for Backend API Server#

Similarly, Gluu Flex Admin UI needs OIDC client details to interact with the Janssen Server via. Jans Config API protected APIs. The Backend API client enables the UI to request and manage access tokens required to access Jans Config API protected resources.

The information is stored in json format with following attributes.

Attribute Name Description
auiBackendApiClient Object with Backend API client details
opHost Token Server hostname
clientId Client Id of OIDC client used to access Token server
clientSecret Client Secret of OIDC client used to access Token server
tokenEndpoint Token endpoint of token server

Configuration Properties for User-Interface#

Attribute Name Description
uiConfig Object with UI configuration attributes
sessionTimeoutInMins The admin UI will auto-logout after a period of inactivity defined in this field.

uiConfig

Attribute Name Description
sessionTimeoutInMins Admin UI Frontend session out time
allowSmtpKeystoreEdit Allow to edit SMTP keystore fields. The default value is true.
cedarlingLogType Set embeded Cedarling log-type in Admin UI. The allowed values are off and std_out.
auiPolicyStoreUrl The remote Policy Store URL
auiDefaultPolicyStorePath The path of the default Policy Store json file on Config Api pod.
cedarlingPolicyStoreRetrievalPoint The retrieval point of the Policy Store. The allowed values are default and remote.

OIDC Client Details for License Server#

Access to the License APIs is managed through OIDC client details. These details allows the Gluu Flex Admin UI Backend to generated access token to allow the retrieval of license-related information using license APIs.

The information is stored in json format with following attributes.

Attribute Name Description
opHost Auth Server hostname used to generate token to access License APIs
clientId Client Id of OIDC client used to generate token to access License APIs
clientSecret Client Secret of OIDC client used to generate token to access License APIs

License Metadata#

License metadata includes relevant information about the Gluu Flex Admin UI's licensing, such as License Key, Hardware id, License server url, License Auth server url, SSA used to register license auth server client.

The information is stored in json format with following attributes.

Attribute Name Description
licenseConfig Object with License configuration details
ssa SSA used to register OIDC client to access license APIs
scanLicenseApiHostname SCAN License server hostname
licenseHardwareKey Hardware key (org_id) to access license APIs
intervalForSyncLicenseDetailsInDays The Admin UI backend syncs license details into the configuration (persistence) after the set interval (default: 30 days).

Sample configuration stored in persistence

{
  "oidcConfig": {
    "auiWebClient": {
      "redirectUri": "https://your.host.com/admin",
      "postLogoutUri": "https://your.gost.com/admin",
      "frontchannelLogoutUri": "https://your.host.com/admin/logout",
      "scopes": [
        "openid",
        "profile",
        "user_name",
        "email"
      ],
      "acrValues": [
        "basic"
      ],
      "opHost": "https://your.host.com",
      "clientId": "2001.aaf0b8eb-a82e-4798-b1a0-e007803a6568",
      "clientSecret": "GGO4t1uixrTpl4Rizt3zag==".
      "additionalParameters": []
    },
    "auiBackendApiClient": {
      "tokenEndpoint": "https://your.host.com/jans-auth/restv1/token",
      "scopes": [
        "openid",
        "profile",
        "user_name",
        "email"
      ],
      "opHost": "https://your.host.com",
      "clientId": "2001.aaf0b8eb-a82e-4798-b1a0-e007803a6568",
      "clientSecret": "GGO4t1uixrTpl4Rizt3zag=="
    }
  },
  "uiConfig": {
    "sessionTimeoutInMins": 30,
    "allowSmtpKeystoreEdit": true,
    "cedarlingLogType":"off",
    "auiPolicyStoreUrl": "",
    "auiDefaultPolicyStorePath": "./custom/config/adminUI/policy-store.json",
    "cedarlingPolicyStoreRetrievalPoint": "default"
  },
  "licenseConfig": {
    "ssa": "...ssa in jwt format...",
    "scanLicenseApiHostname": "https://cloud-dev.gluu.cloud",
    "licenseKey": "XXXX-XXXX-XXXX-XXXX",
    "licenseHardwareKey": "github:ghUsername",
    "oidcClient": {
      "opHost": "https://account-dev.gluu.cloud",
      "clientId": "36a43e2b-a77b-4e9c-a966-a9d98af1665c",
      "clientSecret": "211188d8-a2d8-4562-ab53-80907c1bb5ba"
    }
  }
}
